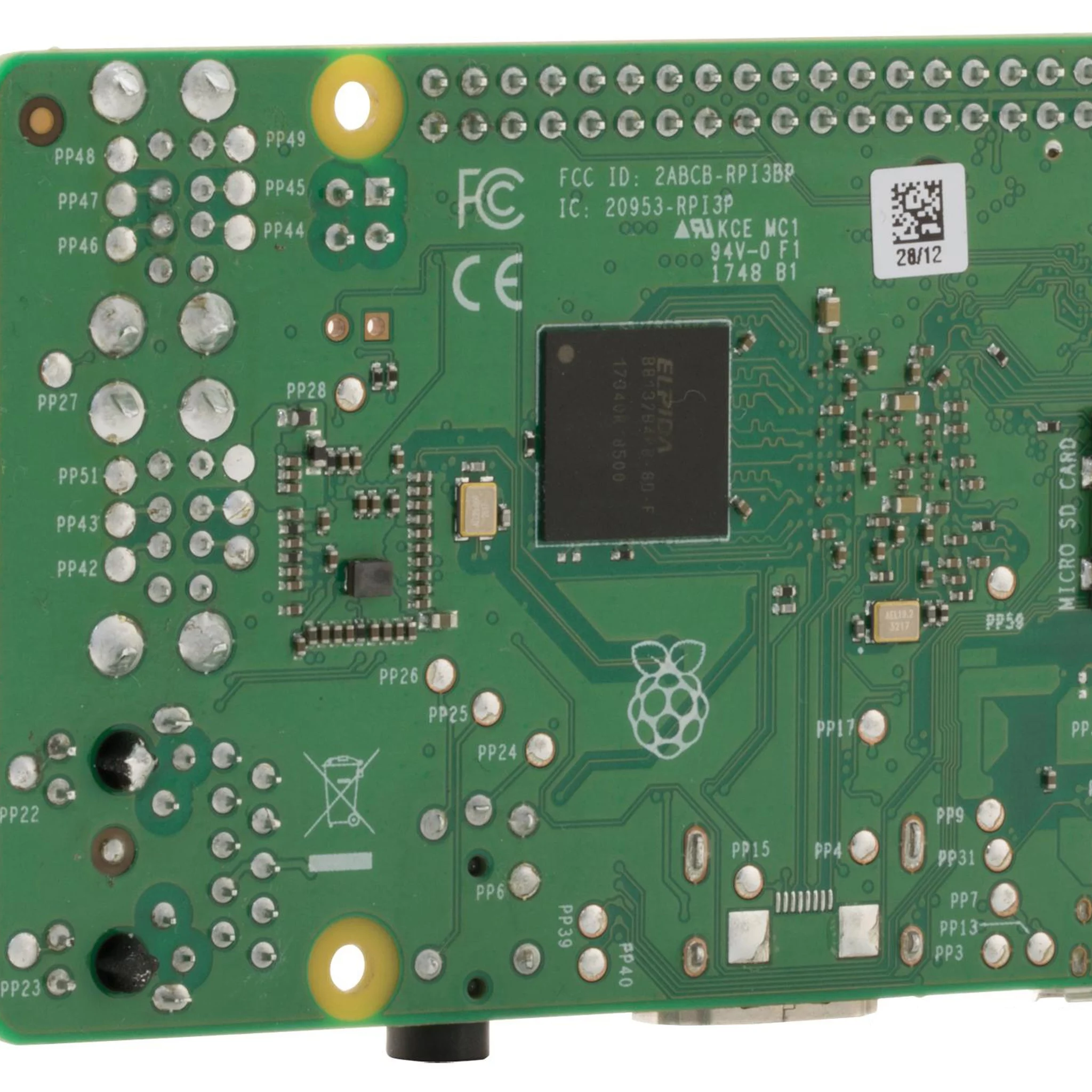

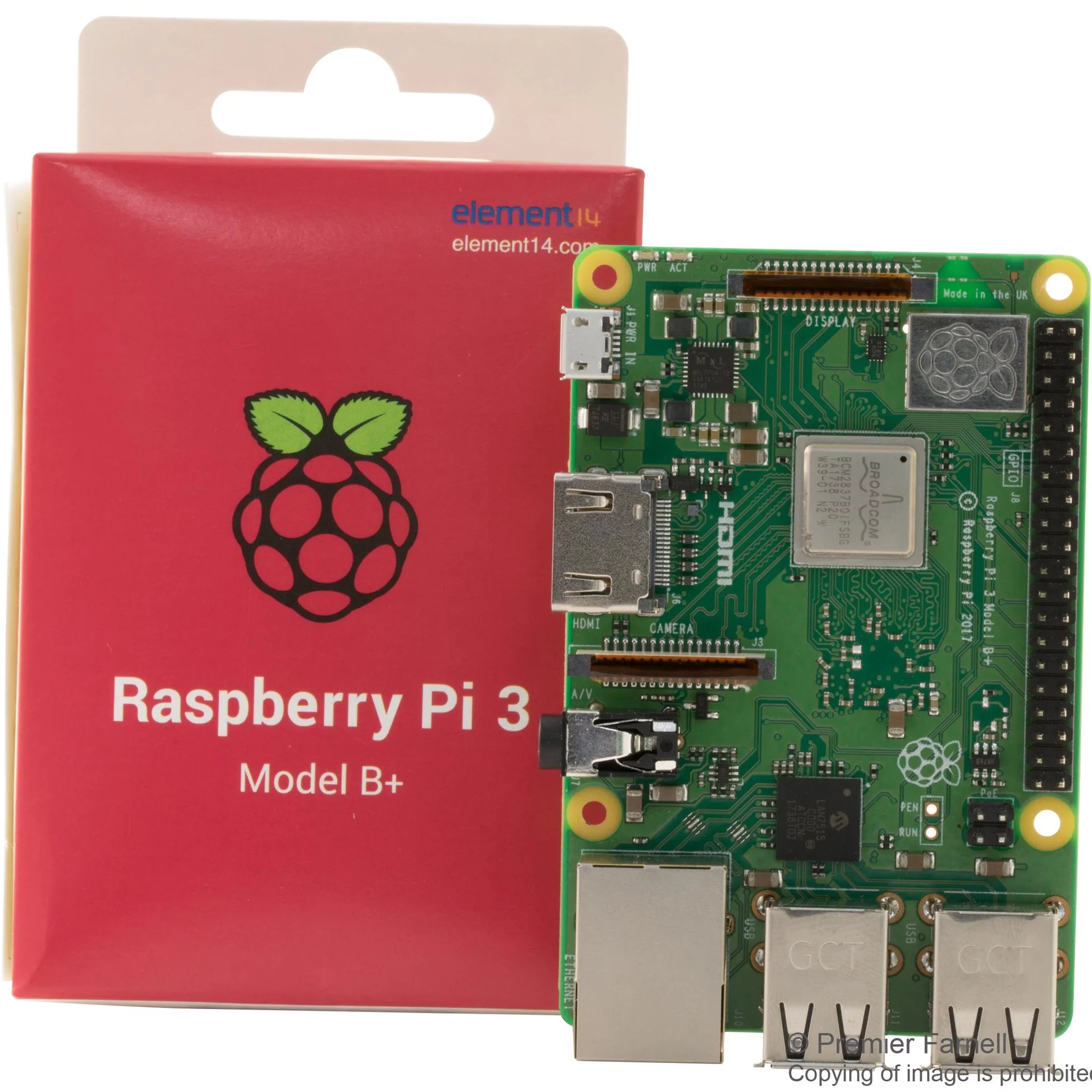

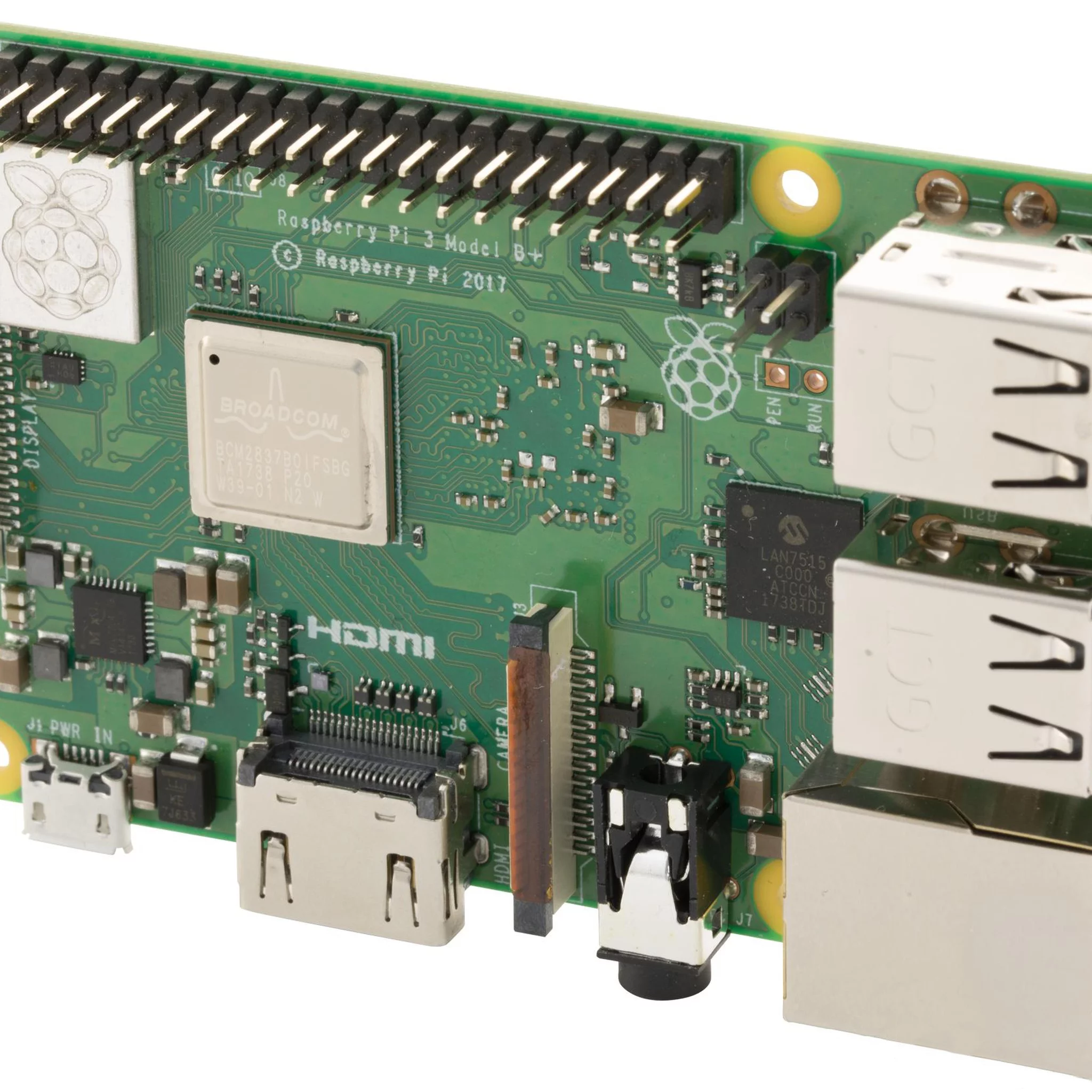

Raspberry Pi 3 Model B+ Quad Core CPU 64 Bit 1.4GHz, 1GB RAM
* Availability from 20-23 January 2020
Specifications
CPU : Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
RAM : 1GB LPDDR2 SDRAM
Connectivity:
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
4 × USB 2.0 ports
Access: Extended 40-pin GPIO header
Video & sound:
1 × full size HDMI
MIPI DSI display port
MIPI CSI camera port
4 pole stereo output and composite video port
Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics
SD card support: Micro SD format for loading operating system and data storage
Input power:
5V/2.5A DC via micro USB connector
5V DC via GPIO header
Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Environment: Operating temperature, 0–50°C
Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/products/raspberry-pi-3-model-b+
Production lifetime: The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.
PRODUCT BRIEF, MECHANICAL DRAWINGS, AND SCHEMATICS
HARDWARE SPECIFICATIONS
More detailed information on Raspberry Pi hardware is available.
