Waveshare Raspberry Pi Zero 2W To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Product Thumbnail
Gallery Thumbnail 1
Gallery Thumbnail 2
Gallery Thumbnail 3
Gallery Thumbnail 4

Waveshare Raspberry Pi Zero 2W To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+

€21.00

Product Weight: 0.0600KG

Add To Wishlist Add To Compare

Product Details

  • SKU : 48-22383
  • Stock : Available

Guaranteed Safe Checkout

Brand Image
No Brand Selected

No description available.

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615
(+357) 22 261 615

Raspberry Pi Zero 2W To 3B Adapter

Alternative Solution for Raspberry Pi 3 Model B/B+

Features at a glance

  • Using pogo pin connection, the Zero 2W can be easily attached
  • Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
  • Onboard headphone jack(extended from USB) and an additional speaker header
  • Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
  • Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive
  • Not compatible with the first generation Zero

Based on Raspberry Pi 2W

Use Pi Zero 2W to reproduce the original appearance of the 3B series as much as possible
More Cost-effective Choice

for reference only, Pi Zero 2W is NOT included



Easy to Install

Using pogo pin connection, the Zero 2W can be easily attached

for reference only, Pi Zero 2W is NOT included

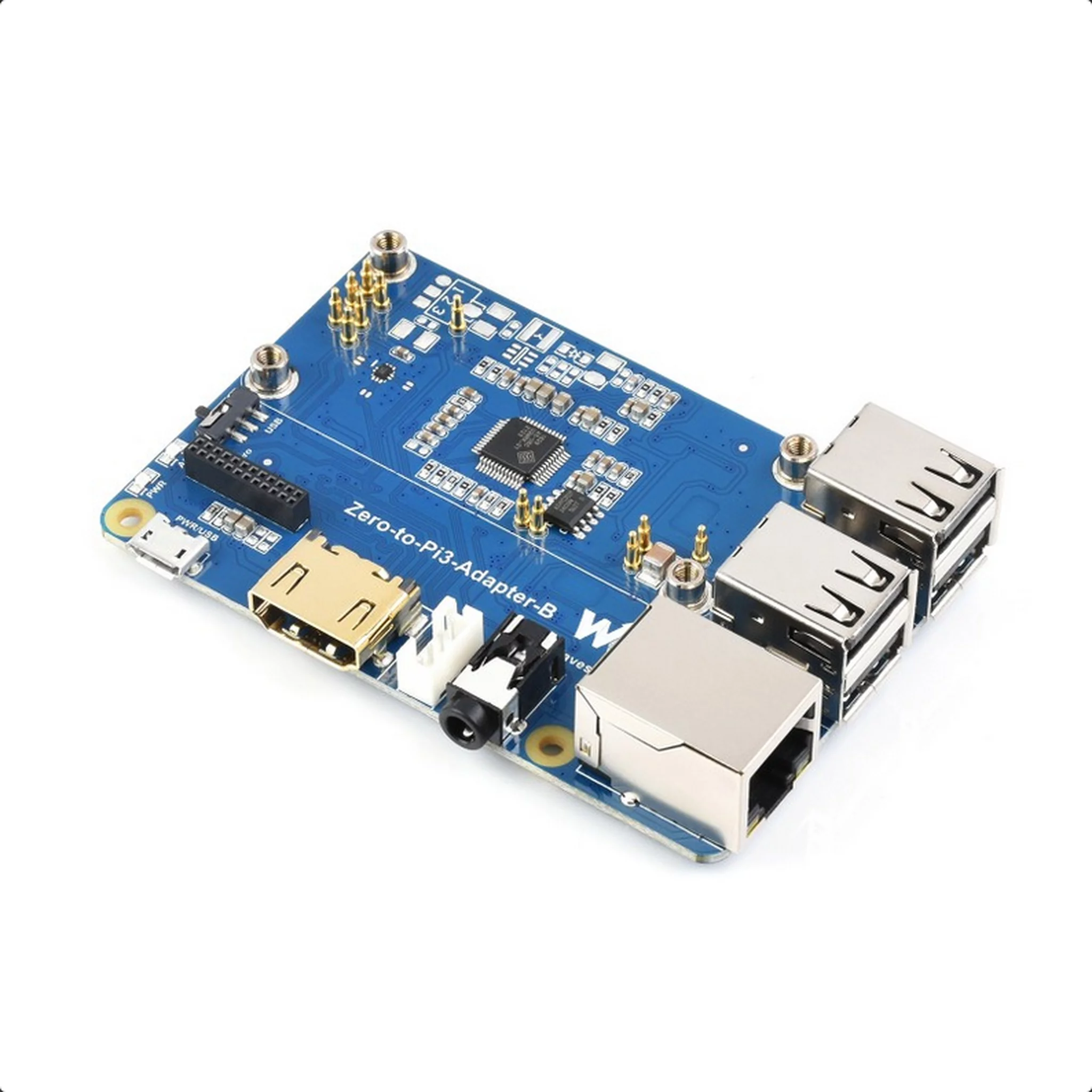

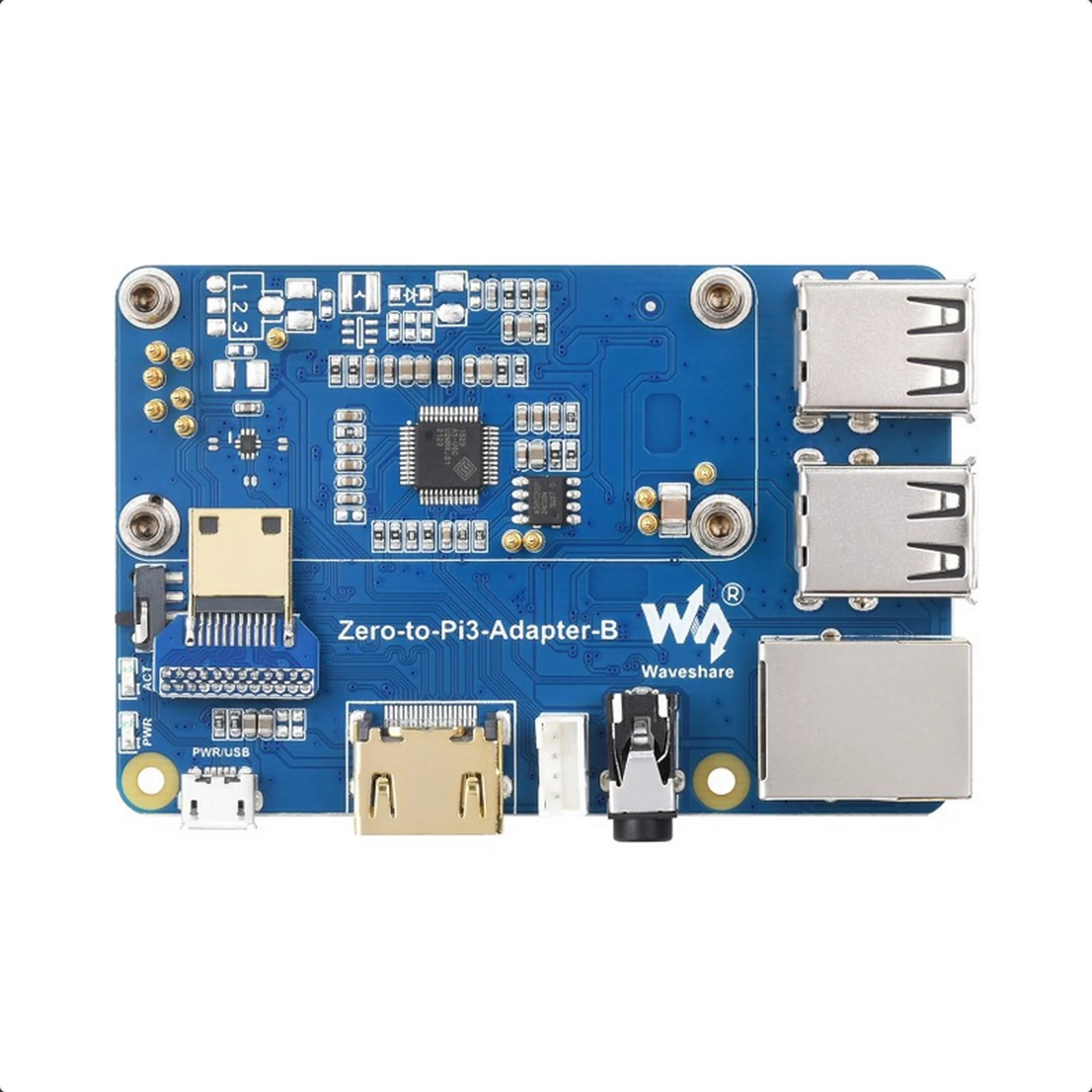

Interface Introduction

Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port
Note: The Ethernet port does not support PoE function

Compatible with Pi 3B Series HATs

Easy access to Pi 3B series HATs or other development projects
Note: the height of the GPIO is higher than the Pi 3B / 3B+

for reference only, Pioneer600 and Pi Zero 2W is NOT included.


Onboard Audio Interface

Support 3.5mm headphone jack and 4PIN speaker header
When headphone is plugged in, the speaker will be automatically disabled.

for reference only, Pi Zero 2W and speaker is NOT included


Outline dimensions





Wiki: www.waveshare.com/wiki/Zero-to-Pi3-Adapter_(B)
